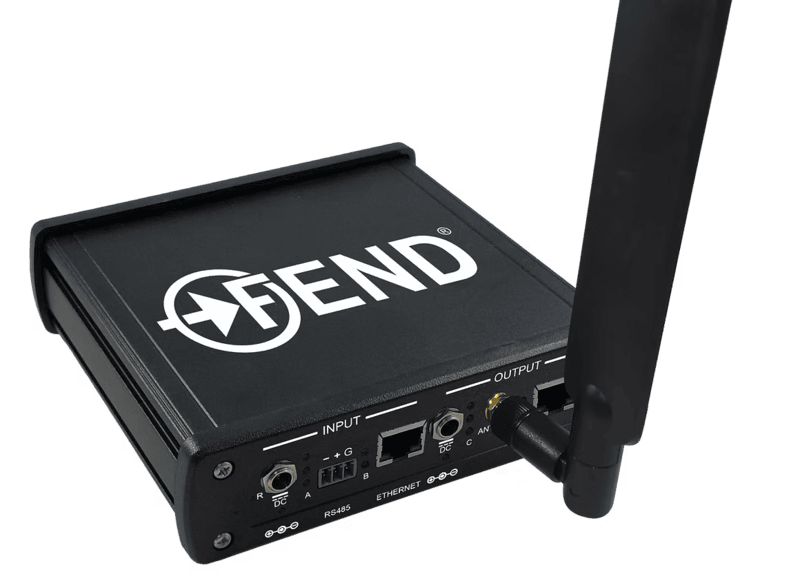

Fend CE5 Diode

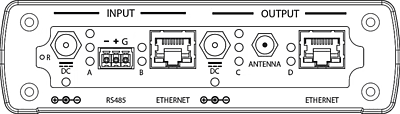

Dioded cellular LTE unidirectional gateway. Send data securely from anywhere to the cloud. Fend’s patented hardware is designed for the unique needs of industrial control systems. The Fend CE5 Data Diode combines the power of optical isolation with the convenience of cellular data. Designed and built in the USA. Integrations available for additional protocols and systems including OPC UA, Wonderware, and others. Transmit a stream of data points over a cellular connection to AWS GovCloud and point the data to a third-party analytics provider for remote equipment monitoring. Model: FD-5M-SE1-CE2-B4 Maximum data throughput: 5.0 Mbps Dimensions (L x W x H), inches: 5.1 x 5.8 x 1.6 Operating voltage: 12-48VDC, 1.5A max Provided power supply(s): 100-240VAC 1.0A in, 12VDC 1.5A out Diode power consumption (max): 8.0 W Design operating temperature range: -30C to +70C Connections Output Side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45, 4G cellular LTE modem Input side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45, Serial RS-485 Combicon MC connector
