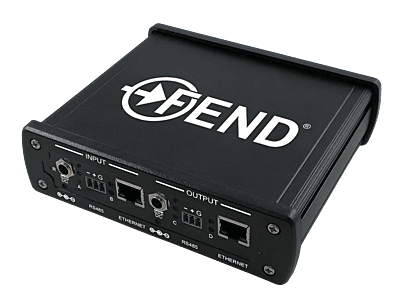

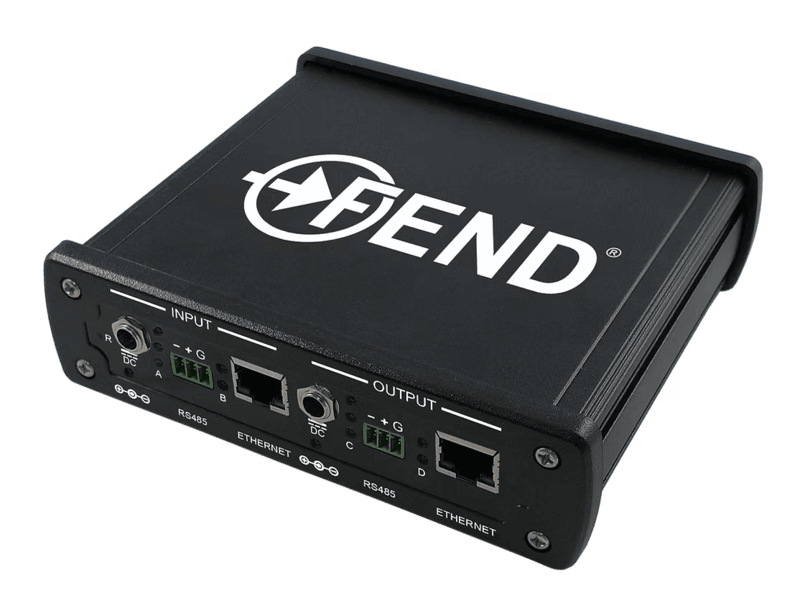

Fend SE15 Diode

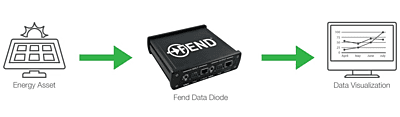

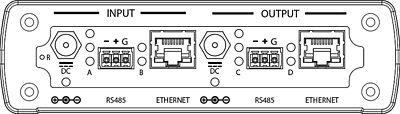

Interfaces with serial and networked industrial controls. Adds a serial outbound option. Fend’s patented hardware is designed for the unique needs of industrial control systems. The Fend SE15 Data Diode is designed and built in the USA. Bring legacy industrial equipment online with the total security of full optical isolation. The Fend SE15 Data Diode includes the following protocols: FTP/FTPS SFTP TCP UDP Syslog Modbus Serial, Modbus TCP/IP BACnet MSTP, BACnet IP LON-IP Fend Cloud on AWS (with optional subscription) Model: FD-15M-SE1-SE2-B4 Maximum data throughput: 15.0 Mbps Dimensions (L x W x H), inches: 5.1 x 5.8 x 1.6 Operating voltage: 12-48VDC, 1.5A max Provided power supply(s): 100-240VAC 1.0A in, 12VDC 1.5A out Diode power consumption (max): 4.0 W Design operating temperature range: -30C to +70C Connections Output Side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45, Serial RS-485 Combicon MC connector Input side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45, Serial RS-485 Combicon MC connector
