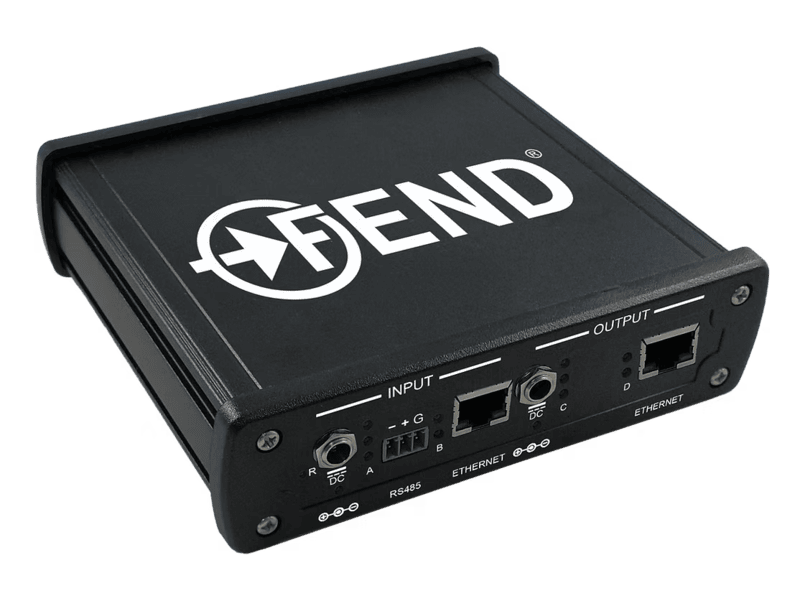

Fend XE5 Diode

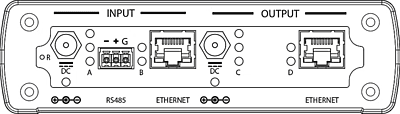

Interfaces with serial and networked industrial controls. Acts as a dioded unidirectional gateway. Fend’s patented hardware is designed for the unique needs of industrial control systems. The Fend XE5 Data Diode is designed and built in the USA. Bring legacy industrial equipment online with the total security of full optical isolation. Model: FD-5M-SE1-XE2-B4 Maximum data throughput: 5.0 Mbps Dimensions (L x W x H), inches: 5.1 x 5.8 x 1.6 Operating voltage: 12-48VDC, 1.5A max Provided power supply(s): 100-240VAC 1.0A in, 12VDC 1.5A out Diode power consumption (max): 4.0 W Design operating temperature range: -30C to +70C Connections Output Side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45 Input side: DC Barrel Connector (optional screw-in secure connector), Ethernet RJ-45, Serial RS-485 Combicon MC connector
